Fair racing starts with clear flag signals
The new X2 RaceLink Club brings on-board flagging to your vehicle, delivering live personal and track flag signals directly from race control, helping you react faster and race smarter.
Accurate live tracking helps race control monitor every competitor consistently, thanks to a fast 10Hz GPS update rate. The result is fairer racing for everyone on track, no matter their position.
Built for endurance and ease of use, the X2 RaceLink Club features up to 24 hours of battery life, simple subscription setup via the Speedhive app, and a reliable design built to handle the demands of real racing, every time you hit the track.
Please note: This is NOT a timing transponder. This device works only when used with the MYLAPS X2 Race Control system. Check with your series organizer or track for compliance before purchase!
Features:
- On-board flag signals help ensure clear communication and fair racing
- Live GPS tracking enables accurate race control monitoring
- Up to 24 hours of battery life for full-day racing
- Option to permanently power the unit from 12VDC
- Fast 10Hz GPS update rate for precise positioning
- Easy setup and subscription management via the Speedhive app
- Multiple subscription options or a no-subscription Go version
More about the X2 RaceLink Club - Bike

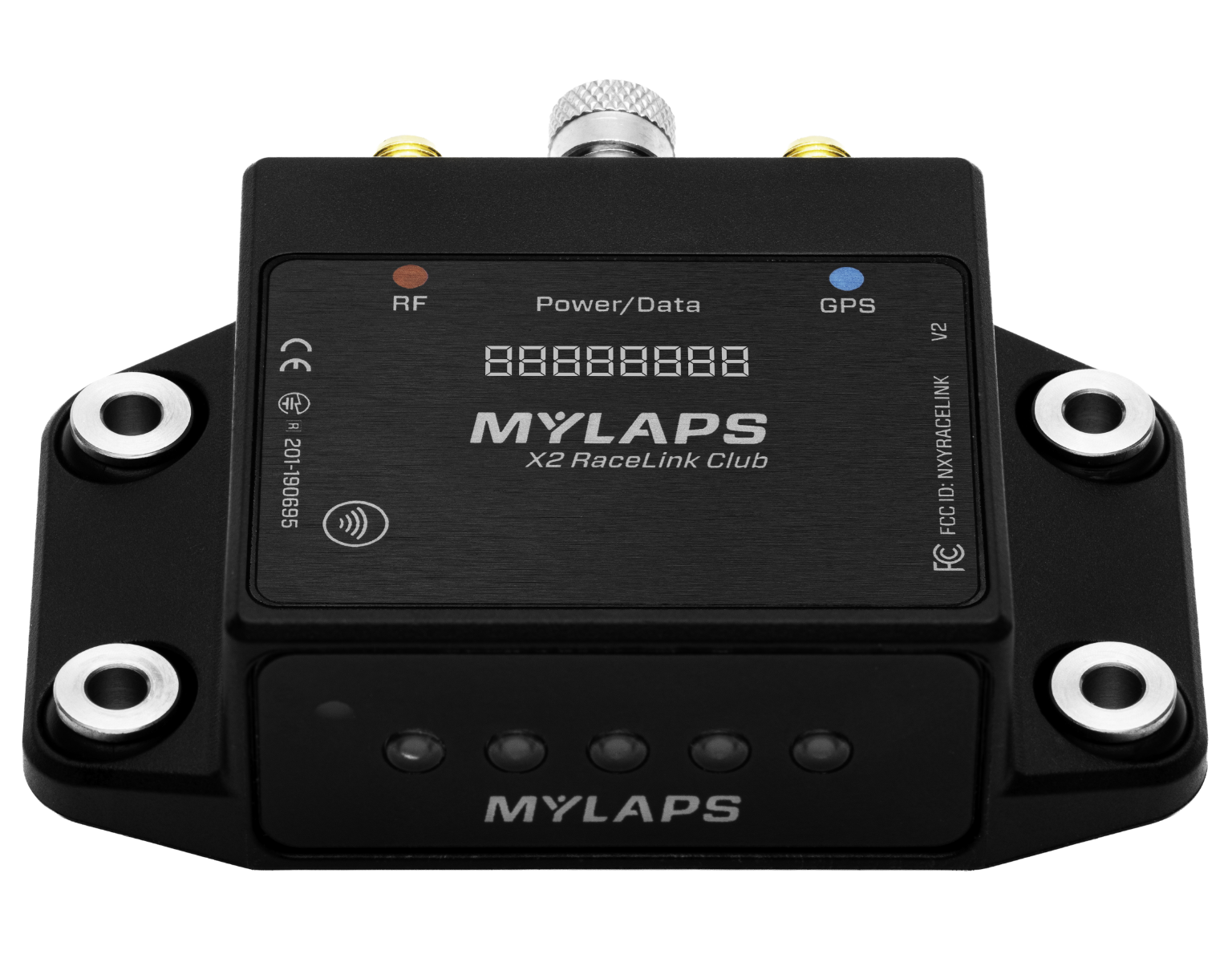

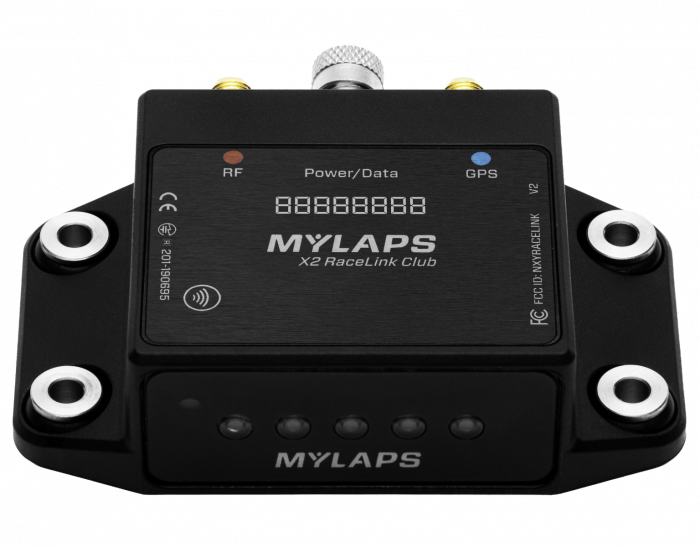

X2 RaceLink Club

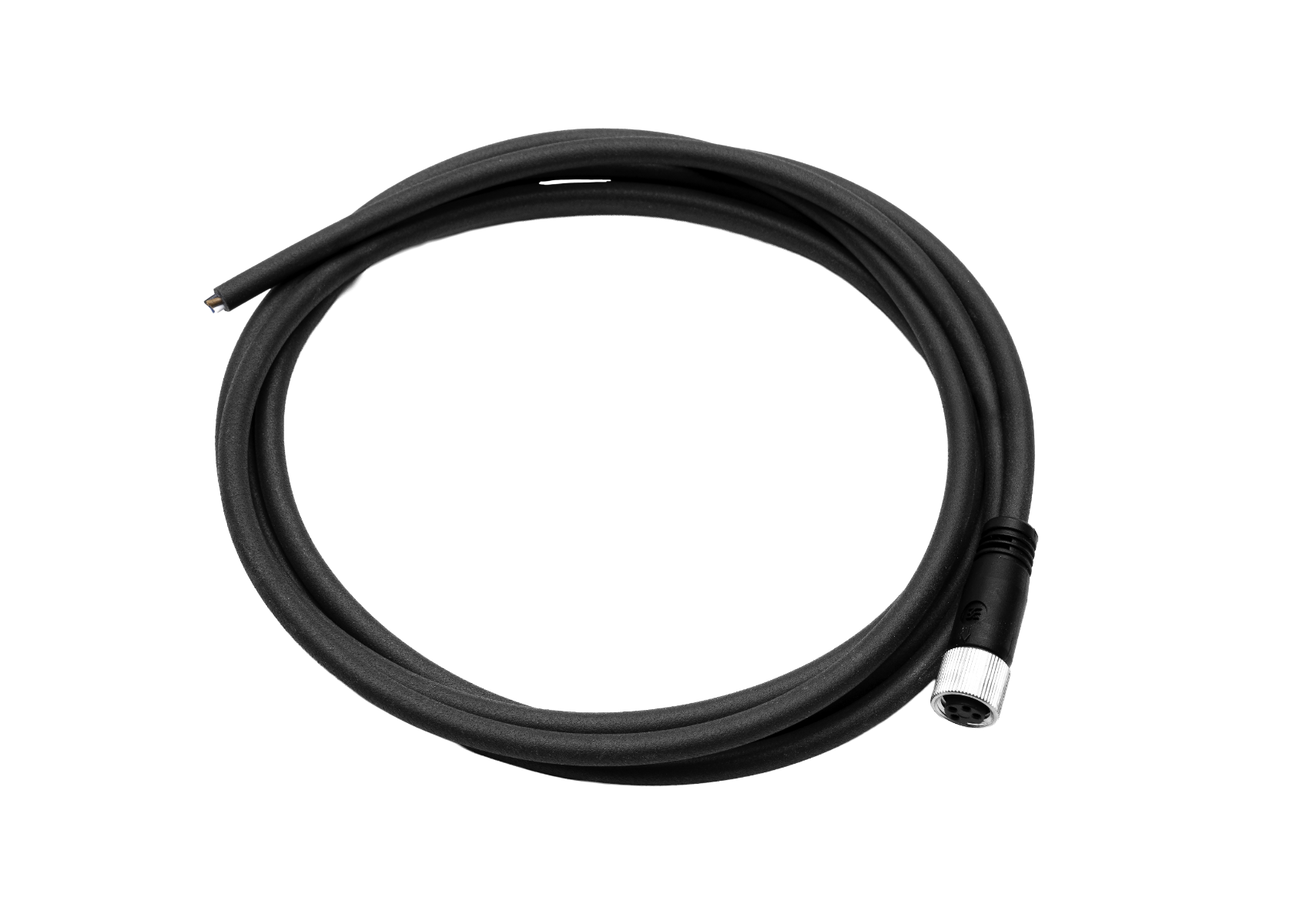

M8 Power Cable

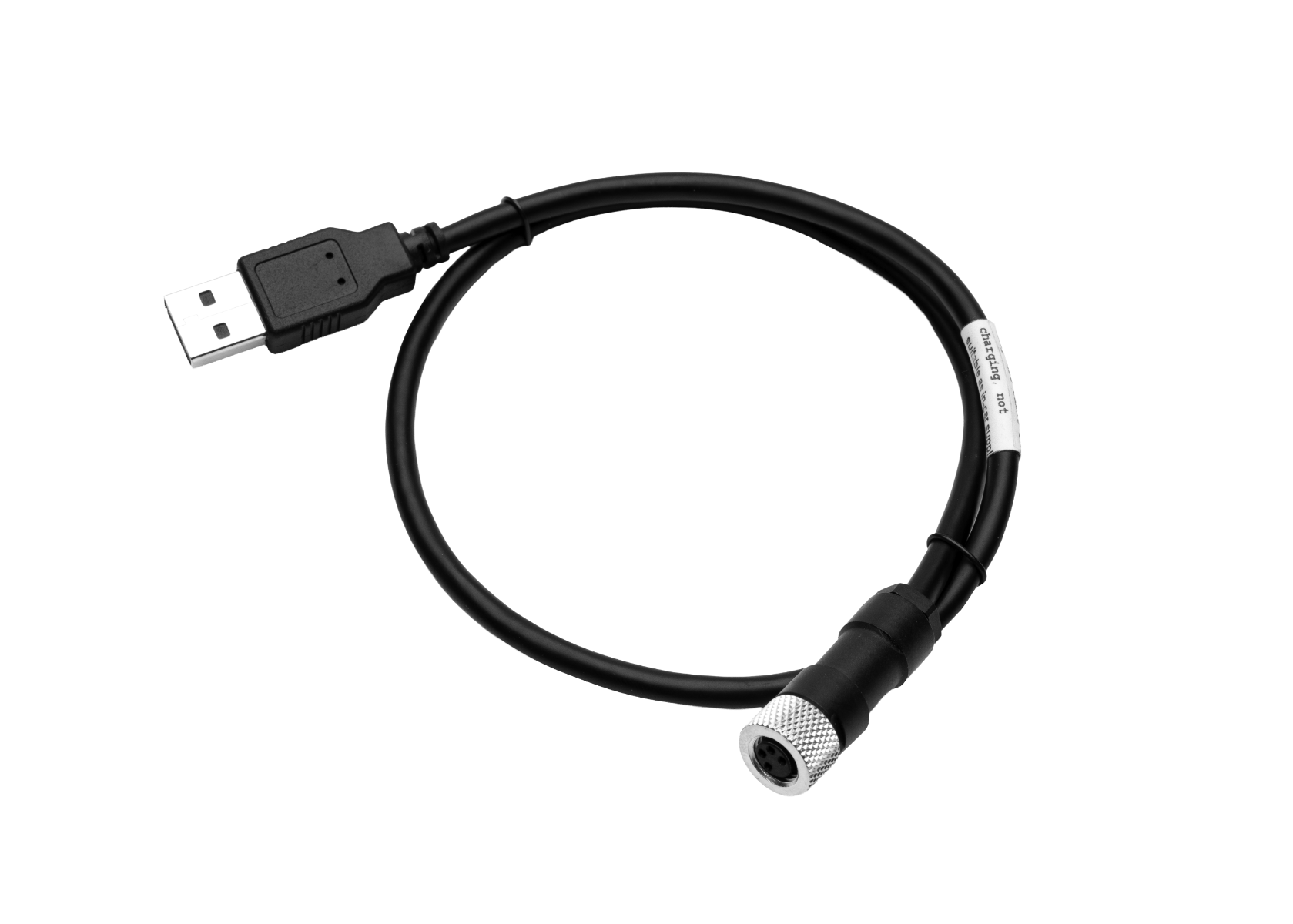

M8 4pin to USB
| Compatible with | MYLAPS X2 Race Control system (check compatibility with your event organizer or track) |
| Dimensions | 83 x 59.5 x 24 mm / 3.3 x 2.4 x 1 in |
| Weight | 120 g / 0.26 lbs |
| (Back up) Battery lifetime | Up to 24 hours |
| Battery charging | 6 hours for full charge |
| Operating voltage | 7-18 VDC typical 12V |
| Power consumption: | 1.3W, 110mA@12V |
| Operating temperature | 0 to 50C / 31 to 122F |
| Storage temperature | 0 to 30C / 31 to 86F |
| Shelf life storage mode | 6 months (when fully charged) |
| Shelf life non-storage mode | 1 month (when fully charged) |
| Humidity range | 10% to 90% relative |
| Positioning | 3 concurrent GNSS reception |
| Sensitivity | -167dBm, 72 channels |
| Update rate GPS | 10Hz |
| GNSS Antenna Connection | SMA(F), 3.0V active antenna |
| RF Antenna Connection | RP-SMA(F) |
| RF Output | +20 dBm @ 2.4GHz ISM |
| Charging |
300mA @ 5VDC 150mA @ 12VDC |
| Protection Class | IP 62 without connectors connected / IP 64 with connectors connected |
| Protocol | CAN 2.0 |
| Baudrate | 1Mbps (default), 500 or 250 Kbps |
| Termination | 120 Ohm software selecteable |
Make sure the top sticker of the X2 RaceLink Club has a clear view to the sky and around the vehicle
- Install both the GPS and RF antenna as high as possible with a clear view to the sky when using the cable kit
- Do not place the X2 RaceLink Club next to other RF antennas. Keep at least 1m distance
- Find a place on your dashboard where you can clearly see the lights of the X2 RaceLink Club
- Keep out of direct sunlight as much as possible
For more information please visit help.mylaps.com
For more information please visit help.mylaps.com
Warranty and Insurance
Your MYLAPS transponder or chip comes with warranty and insurance. It covers damage as a result of accident or fire – but not theft or loss.
This means MYLAPS guarantees that the device keeps working and is in good order.
If you have a TR2 Transponder, X2 Transponder, Flex Transponder or ProChip with a valid subscription, we provide unlimited warranty
as long as you have an active subscription, under some conditions. Should any problems occur during normal use – as described in the manual –
MYLAPS will repair or replace your transponder free of charge. All details can be found in our warranty policy.
