The TR2 Transponder is the newest and most innovative transponder for motocross/MX. This transponder can be charged by your vehicle's battery and is replacing the X2 Direct Power Transponder. Reliable hardware, easy subscription management via Bluetooth and the Speedhive App, and flexible subscription options to fit your needs.
Features:
- Can NOT be used as a battery-powered transponder. Only works when directly wired to a 12V vehicle battery
- Can be powered by your vehicle battery (can NOT be used as rechargeable transponder)
- Easy buying and syncing your subscription with the Speedhive App
- Easy and free online access to your practice and race results via the Speedhive platform*
- Compatible with all MYLAPS (AMB) timing systems
- Accurate and reliable
- Unlimited warranty during active subscription (2 years warranty on TR2 Go Transponder)
* No results on Speedhive? Ask your event organizer or local track to enable Speedhive
More about the TR2 Transponder Direct Power - MX

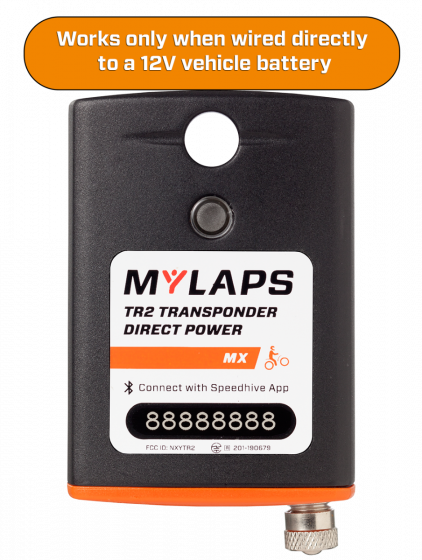

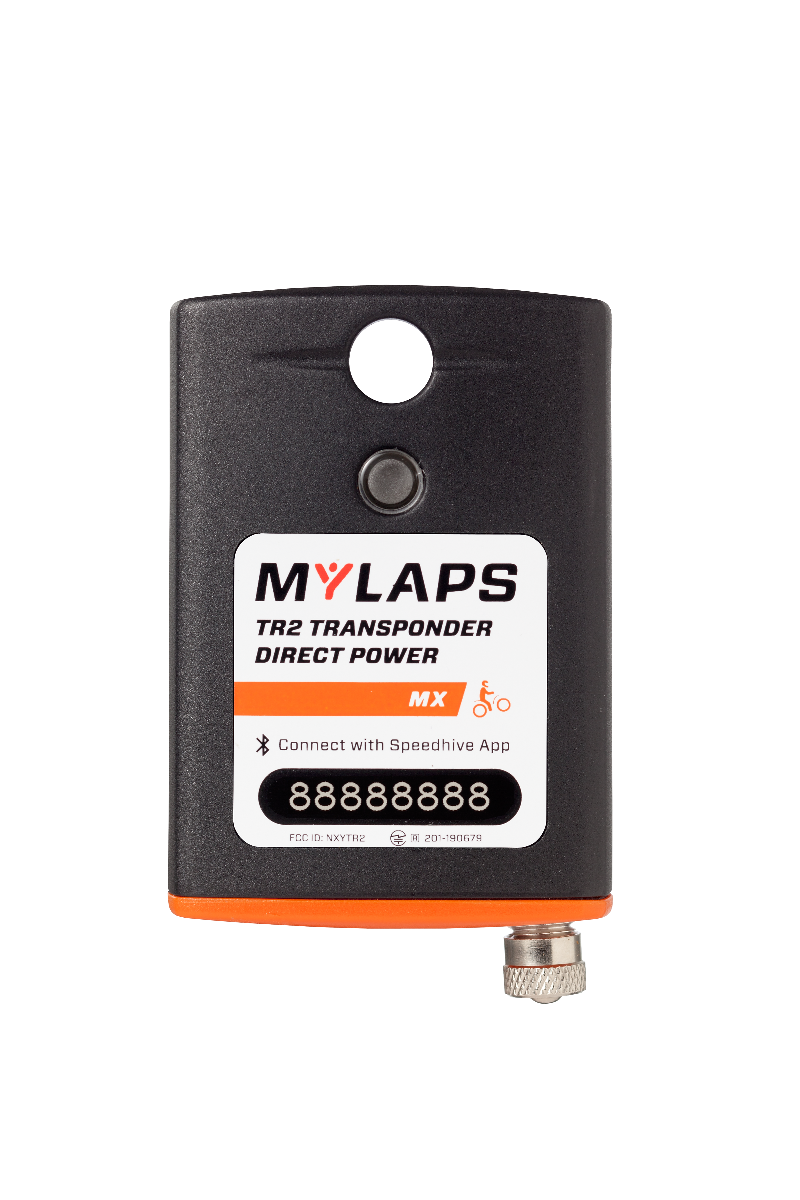

TR2 Transponder Direct Power
TR2 Holder
TR2 Charging Cable
| Compatible with: | MYLAPS X2 and TranX timing system |
| Dimensions: | 80 x 50 x 22 mm ( 3.1 x 2 x 0.9 in.) |
| Weight: | 115 gram (0,25 lb) |
| Housing: | Waterproof IP67 |
| Temperature range: | -20 to +50°C (-4 to +122°F) |
| Transponder ID: | Unique 8 digit number |
| Operating voltage: | 8-17 VDC |
| Power consumption: | max. 60mA @ 12VDC |
| Max. speed: | 120 km/h (75 mph) |
| Transponder position: | Max. mounting height 120 cm (4 ft.) |
Get ready to race
Make sure you follow these steps before you head for the track:
- Log into or create an account in the Speedhive App
- Register your TR2 Transponder
- Activate your subscription
More information about activating and installation in the quick start guide.
Installation
Use the TR2 Holder to easily mount the TR2 Transponder on your vehicle. For the best accuracy, make sure to mount your TR2 Transponder as vertical as possible. On a motorcycle, do not mount the TR2 Transponder more than 120cm (4ft) above the ground.
For all information about the TR2 Transponder visit our support page.
Warranty and Insurance
Your MYLAPS transponder or chip comes with warranty and insurance. It covers damage as a result of accident or fire – but not theft or loss.
This means MYLAPS guarantees that the device keeps working and is in good order.
If you have a TR2 Transponder, X2 Transponder, Flex Transponder or ProChip with a valid subscription, we provide unlimited warranty
as long as you have an active subscription, under some conditions. Should any problems occur during normal use – as described in the manual –
MYLAPS will repair or replace your transponder free of charge. All details can be found in our warranty policy.
